Features

  • An ice storage unit choose the size of refrigeration machines according to average loads.
  • But when the output reaches to the peak, it can still provide a large cooling capacity to meet the cooling demand.
  • Use low electricity prices at night, off peak electricity hours.
  • When the energy is at a lower price, which some times cost half the money.
  • The plates freeze the water in the tank.
  • During the day when the power is more expensive, the water cooler is turned off.
  • The ice will melt into ice water.
  • Storage of cooling capacity can be
used for cooling your products.

Specifications

Specifications of Ice Bank
Model Insulation thickness(mm) Length(mm) Width(mm) Height(mm) NW(kg) Volume(L) Ice storage capacity(kg) kcal
IB-1200 50 1600 2200 1600 750 4400 1200 96172
IB-1800 920 4400 1800 144258
IB-2400 2000 2200 1600 1200 5500 2400 192344
Remark:
1.The above is a one-stage plate heat exchanger, which directly exchanges fresh milk with ice water;
2.If request two stages of heat exchange,please kindly contact us.
3.The quotation way is EXW SHANGHAI

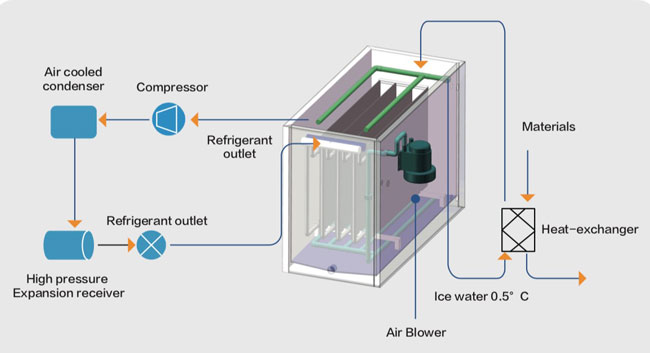

Construction and working principle

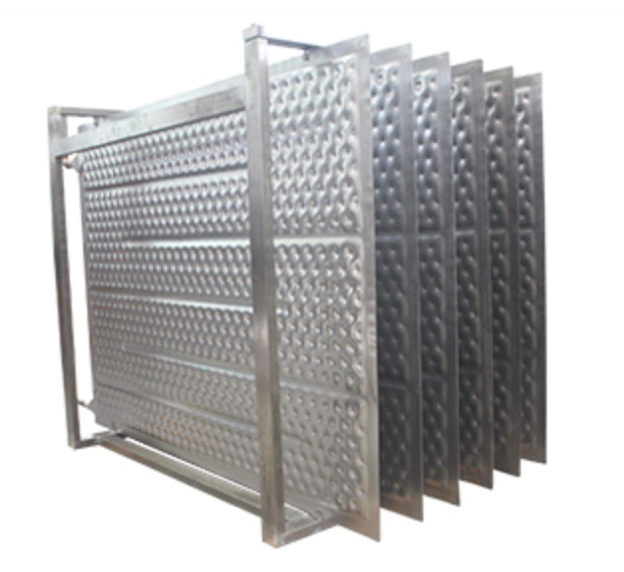

Ice bank is a package of evaporator plates upright in the water tank, cooling media goes through inside of the plates, absorbed heat of water from outside of evaporator, cool the water to freezing point. Evenly form a layer of ice film up to 50mm on the plates (Ice film’s thickness depend on storage time).

The ice film is stored statically in the water tank, so the water in the tank is extremely low, close to 0 °C. At night when the energy is low priced, the plates freeze the water in the tank.During the daytime when electricity is more expensive the chiller is turned off and the ice will melt into ice water which can be used to indirectly cool your products.

All of our Ice Banks are custom-made. Please consult us so we can discuss your requirements for cooling or heating and determine which solution is best suited for you.
